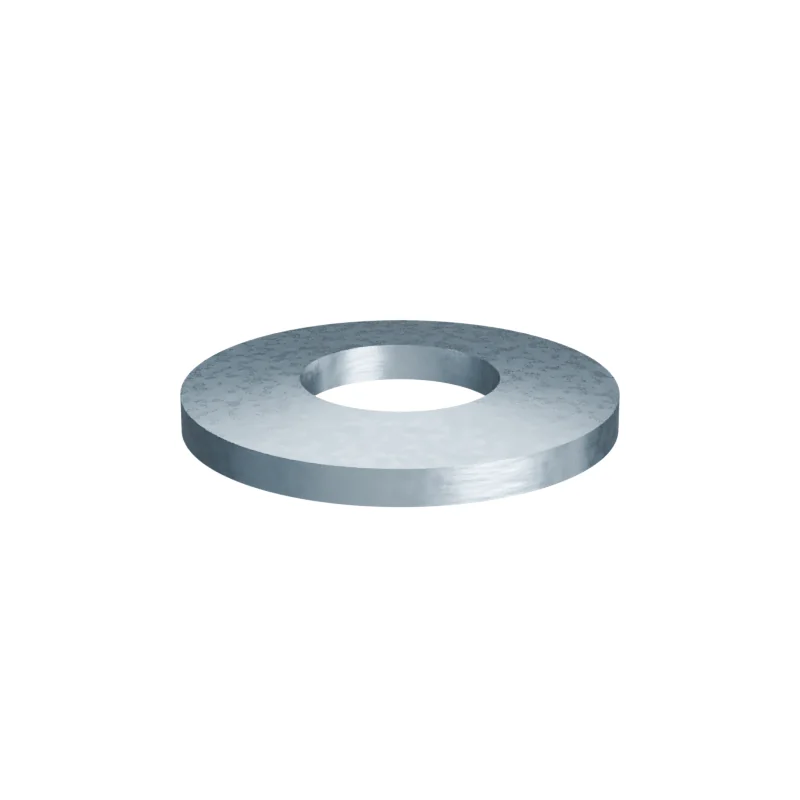

DIN 6796 M3 Conical Spring Washer
In stock in 3 material, grade and finish combinations.
Dimensions at M3
mm · DIN 6796 · current edition 2009-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M3 | – | – |
| d1 | Inner diameter | 3.2 | – | – |
| d2 | Outer diameter | 7 | – | – |
| h | Free height | – | 0.72 | 0.85 |
| s | Material thickness | 0.6 | – | – |
- Approx. weight
- ≈ 0.14 kg per 1 000 pieces · Bare steel, before coating and packing.6974 pieces per kg
