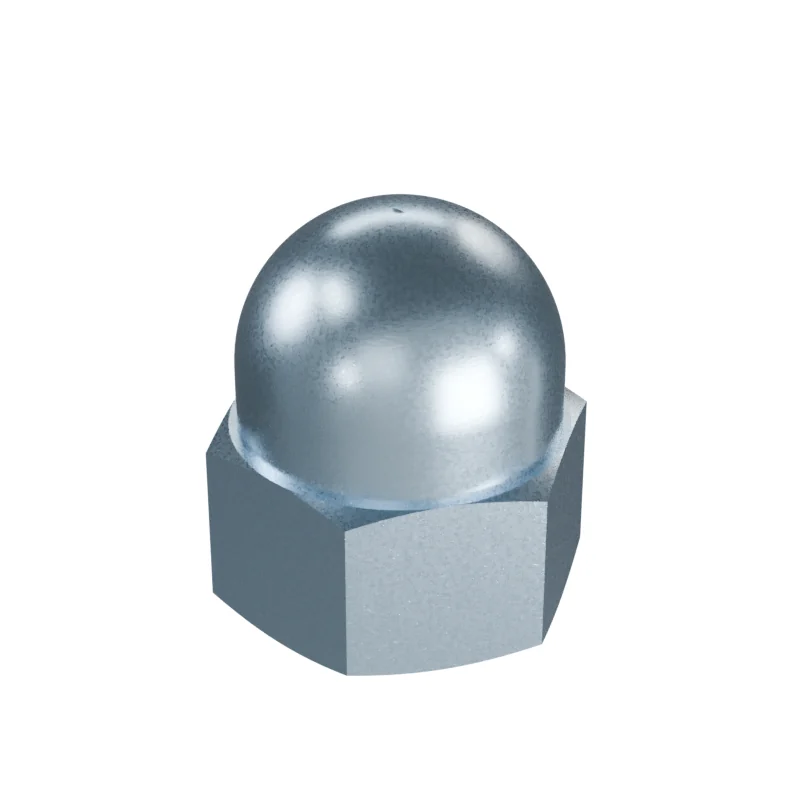

DIN 1587 M12 Hexagon Domed Cap Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M12
mm · DIN 1587 · dimensions from 2000-10 · current edition 2021-11| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| s | Width across flats | – | – | 18 |
| e | Width across corners | – | 20.03 | – |
| m | Nut height | 10 | – | – |
| h | Overall height | 22 | – | – |
| dk | Dome diameter | – | – | 17 |
| dw | Bearing diameter | – | 16.6 | – |
| da | Underhead diameter | – | – | 13 |
- Approx. weight
- ≈ 28.30 kg per 1 000 pieces · Bare steel, before coating and packing.35.3 pieces per kg
