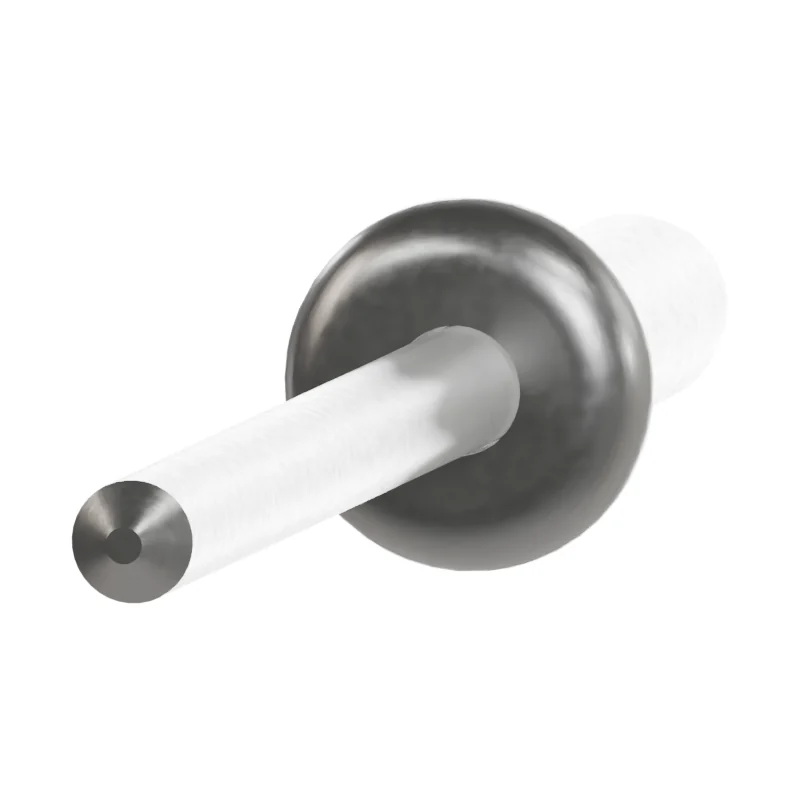

ISO 15983 3 x 12 Protruding Head Blind Rivet
In stock in 2 material, grade and finish combinations.
Dimensions at 3 x 12
mm · ISO 15983 · 2002 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 3 | – | – |
| l | Length | 12 | – | – |
| d | Body diameter | – | 2.85 | 3.08 |
| dk | Head diameter | 6.3 | 5.4 | – |
| k | Head height | 1.3 | – | – |
| dm | Mandrel diameter | – | – | 2.05 |
| p | Mandrel length | – | 25 | – |
| b max | Blind length addition | 4 | – | – |
| dh1 | Clearance hole | – | 3.1 | 3.2 |
- Length under head
- 12 mm · 12–13 mm to ISO 15983
- Approx. weight
- ≈ 1.72 kg per 1 000 pieces · Bare steel, before coating and packing.582 pieces per kg
