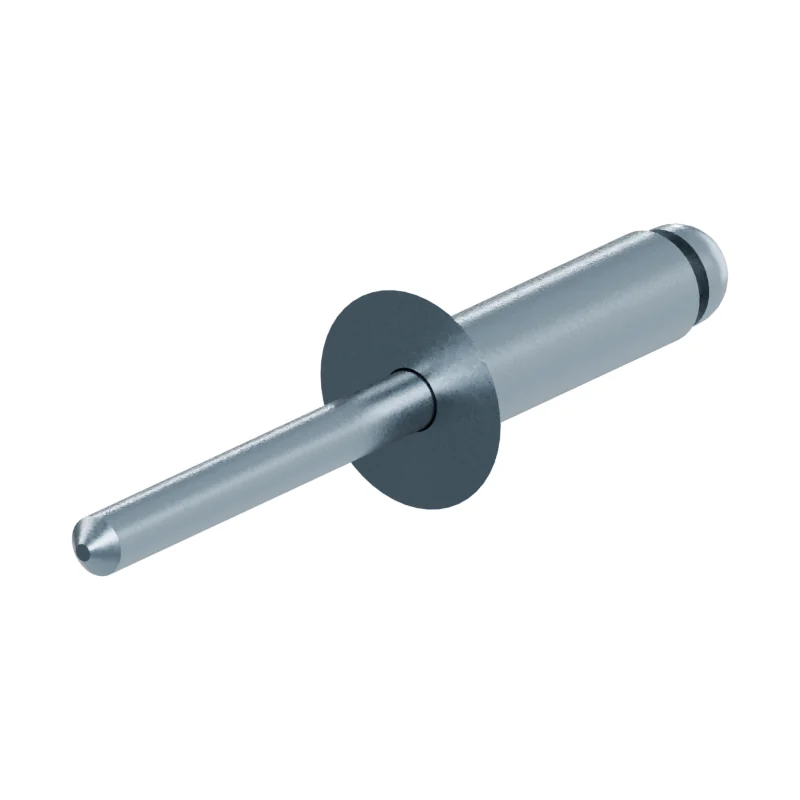

ISO 15980 6 x 20 Countersunk Head Blind Rivet
In stock in 2 material, grade and finish combinations.
Dimensions at 6 x 20
mm · ISO 15980 · 2002 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 6 | – | – |
| l | Length | 20 | – | – |
| d | Body diameter | – | 5.85 | 6.08 |
| dk | Head diameter | 12.6 | 10.8 | – |
| k | Head height | 2.5 | – | – |
| dm | Mandrel diameter | – | – | 3.4 |
| p | Mandrel length | – | 27 | – |
| b max | Blind length addition | 5 | – | – |
| dh1 | Clearance hole | – | 6.1 | 6.2 |
- Length incl. head
- 20 mm · 20–21 mm to ISO 15980
- Approx. weight
- ≈ 8.06 kg per 1 000 pieces · Bare steel, before coating and packing.124 pieces per kg
