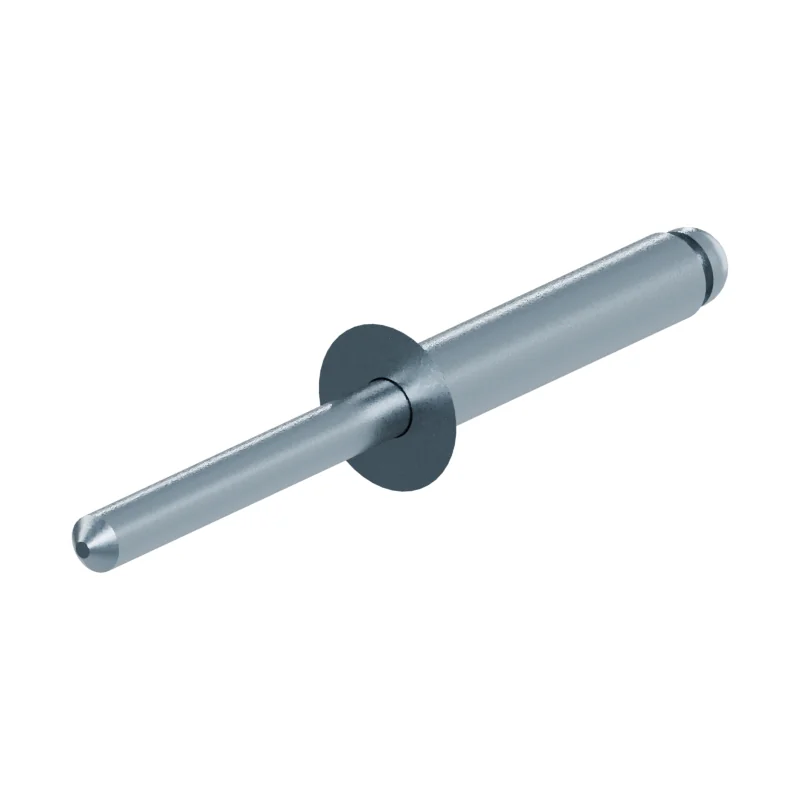

ISO 15980 5 x 25 Countersunk Head Blind Rivet
In stock in 2 material, grade and finish combinations.
Dimensions at 5 x 25
mm · ISO 15980 · 2002 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 5 | – | – |
| l | Length | 25 | – | – |
| d | Body diameter | – | 4.85 | 5.08 |
| dk | Head diameter | 10.5 | 8.7 | – |
| k | Head height | 2.1 | – | – |
| dm | Mandrel diameter | – | – | 3.5 |
| p | Mandrel length | – | 27 | – |
| b max | Blind length addition | 4.5 | – | – |
| dh1 | Clearance hole | – | 5.1 | 5.2 |
- Length incl. head
- 25 mm · 25–26 mm to ISO 15980
- Approx. weight
- ≈ 6.99 kg per 1 000 pieces · Bare steel, before coating and packing.143 pieces per kg
