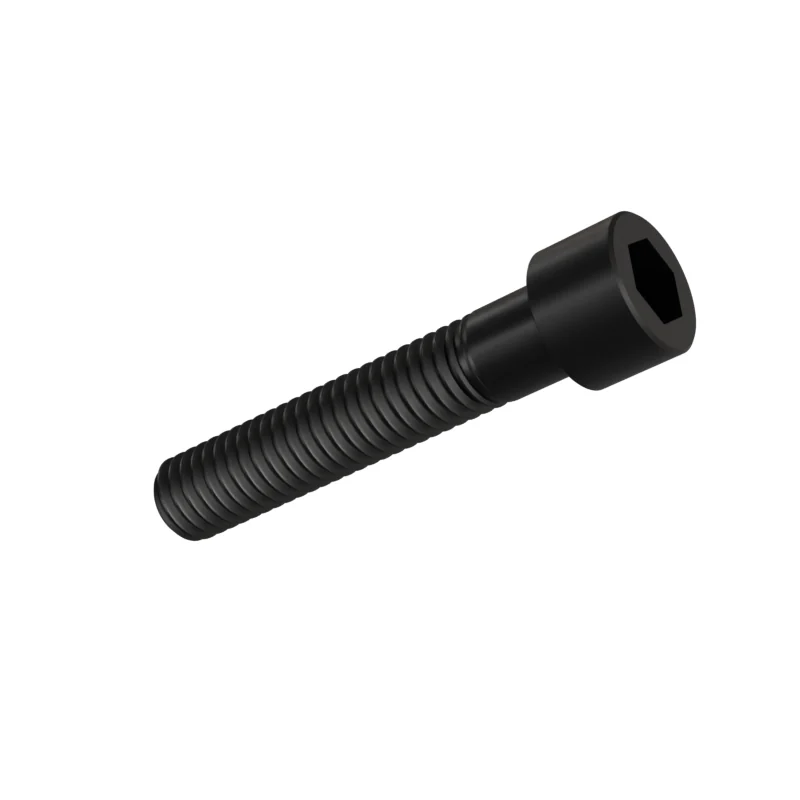

ASME B18.3 3/8-16 UNC x 2 Socket Head Cap Screw
In stock in 2 material, grade and finish combinations.
Dimensions at 3/8-16 UNC x 2
in · ASME B18.3 · 2012 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 3/8-16 UNC | – | – |
| L | Length | 2 | – | – |
| Basic major diameter | 0.375 | – | – | |
| TPI | Threads per inch | 16 | – | – |
| Thread series | UNC | – | – | |
| Thread class | 3A | – | – | |
| D | Body diameter | – | 0.3678 | 0.375 |
| A | Head diameter | – | 0.54 | 0.562 |
| H | Head height | – | 0.368 | 0.375 |
| C | Head chamfer | – | – | 0.04 |
| J | Hex socket size | 0.312 | – | – |
| T | Key engagement | – | 0.182 | – |
| G | Socket wall | – | 0.143 | – |
| K | Head bearing edge chamfer or radius | – | – | 0.01 |
| LT | Thread length (LT) | – | 1.25 | – |
- Length under head
- 2 in
- Approx. weight
- ≈ 32.64 kg per 1 000 pieces · Bare steel, before coating and packing.30.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Tap drill5/16 (0.3125 in)
