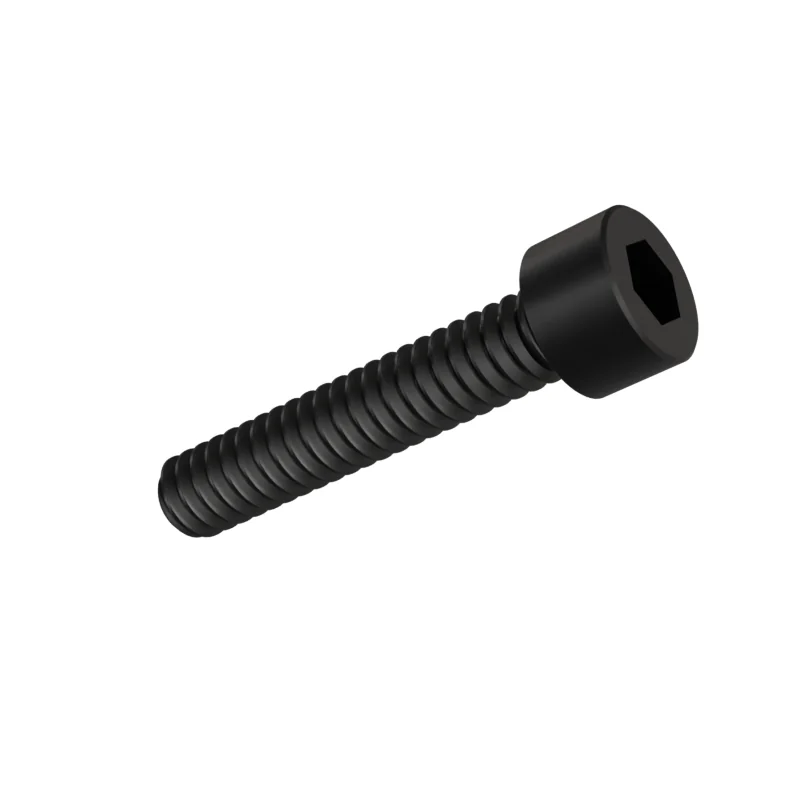

ASME B18.3 #10-24 UNC x 1 Socket Head Cap Screw
In stock in 2 material, grade and finish combinations.
Dimensions at #10-24 UNC x 1
in · ASME B18.3 · 2012 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | #10-24 UNC | – | – |
| L | Length | 1 | – | – |
| Basic major diameter | 0.19 | – | – | |
| TPI | Threads per inch | 24 | – | – |
| Thread series | UNC | – | – | |
| Thread class | 3A | – | – | |
| D | Body diameter | – | 0.184 | 0.19 |
| A | Head diameter | – | 0.298 | 0.312 |
| H | Head height | – | 0.185 | 0.19 |
| C | Head chamfer | – | – | 0.018 |
| J | Hex socket size | 0.156 | – | – |
| T | Key engagement | – | 0.09 | – |
| G | Socket wall | – | 0.065 | – |
| K | Head bearing edge chamfer or radius | – | – | 0.008 |
| LT | Thread length (LT) | – | 0.88 | – |
- Length under head
- 1 in
- Approx. weight
- ≈ 4.25 kg per 1 000 pieces · Bare steel, before coating and packing.235 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Tap drill#25 (0.1495 in)
