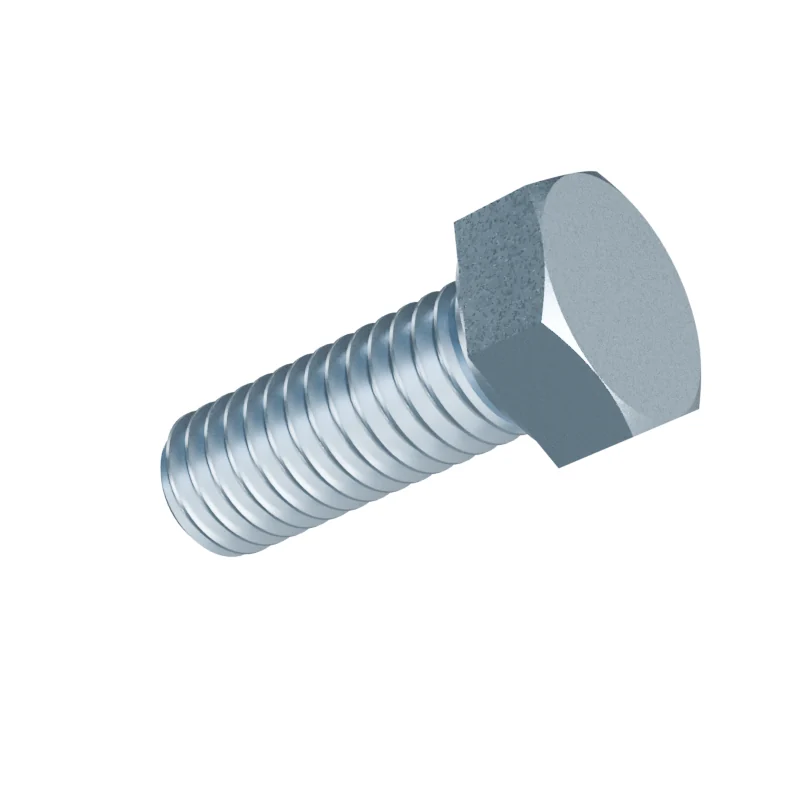

ASME B18.2.1 3/8-16 UNC x 1 Hex Cap Screw
In stock in 6 material, grade and finish combinations.
Dimensions at 3/8-16 UNC x 1
in · ASME B18.2.1 · 2012 (R2021) edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 3/8-16 UNC | – | – |
| L | Length | 1 | – | – |
| Basic major diameter | 0.375 | – | – | |
| TPI | Threads per inch | 16 | – | – |
| Thread series | UNC | – | – | |
| Thread class | 2A | – | – | |
| E | Body diameter | – | 0.369 | 0.375 |
| F | Width across flats | – | 0.551 | 0.562 |
| G | Width across corners | – | 0.628 | 0.65 |
| H | Head height | – | 0.226 | 0.243 |
| J | Wrenching height | – | 0.16 | – |
| LT | Thread length (L≤6 in) | 1 | – | – |
| LT | Thread length (L>6 in) | 1.25 | – | – |
- Length under head
- 1 in
- Approx. weight
- ≈ 19.58 kg per 1 000 pieces · Bare steel, before coating and packing.51.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Tap drill5/16 (0.3125 in)
