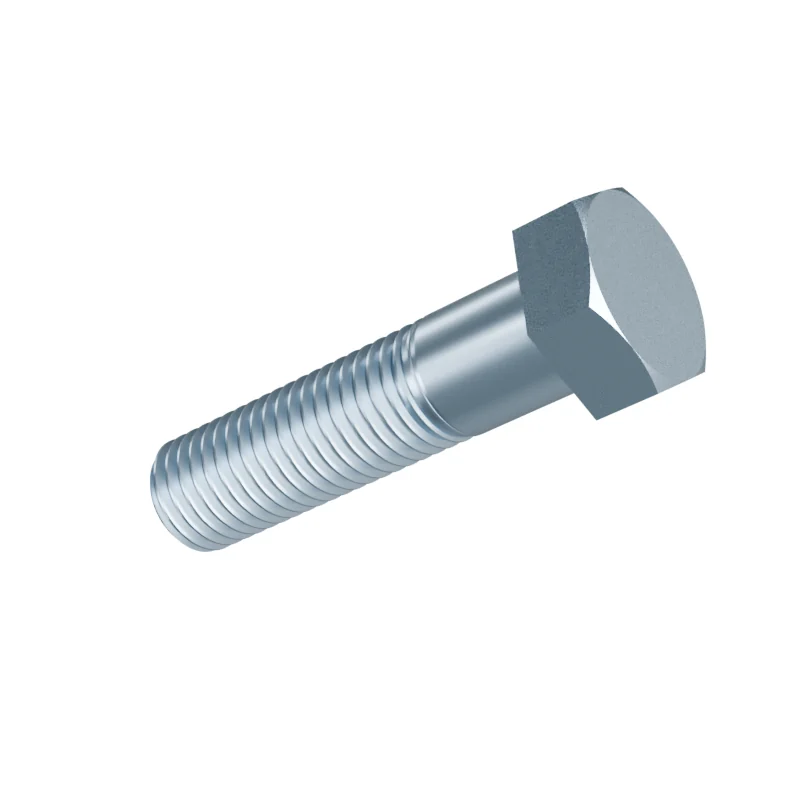

ASME B18.2.1 3/4-10 UNC×3 Hex Cap Screw8 combinations of material, property class and finish supplied in this size.
- Standard
- ASME B18.2.1 · 2012
- Thread
- 3/4-10 UNC
- Length under head
- 3 in
- Drive
- 1.125 in spanner · e 1.254 in
- Head height
- 0.483 in
- Clearance / tap drill
- 21/32 (0.6562 in)
- Weight
- 221.21 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering4.5 pieces per kg
Order 3/4-10 UNC×3
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | Grade 5 | Zinc Plated | — | |
| Carbon Steel | Grade 5 | Blackened | — | |
| Carbon Steel | Grade 5 | Plain | — | |
| Carbon Steel | Grade 8 | Zinc Plated | — | |
| Carbon Steel | Grade 8 | Blackened | — | |
| Carbon Steel | Grade 8 | Plain | — | |
| Carbon Steel | Grade A | Hot Dip Galvanized | — | |
| Carbon Steel | Grade A | Plain | — |
Dimensions at 3/4-10 UNC×3
| Dimension | Value |
|---|---|
| s | 1.125 in |
| e | 1.254 in |
| k | 0.483 in |
| Weight | 221.21 kg / 1000 pcs |
| Pieces per kg | 4.5 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Tap drill | 21/32 (0.6562 in) |
Other lengths in 3/4-10 UNC
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| 3/4-10 UNC×2.5 | 194.78 | open |
| 3/4-10 UNC×2.75 | 208.00 | open |
| 3/4-10 UNC×3 | 221.21 | this page |
| 3/4-10 UNC×3.25 | 234.42 | open |
| 3/4-10 UNC×3.5 | 247.64 | open |
