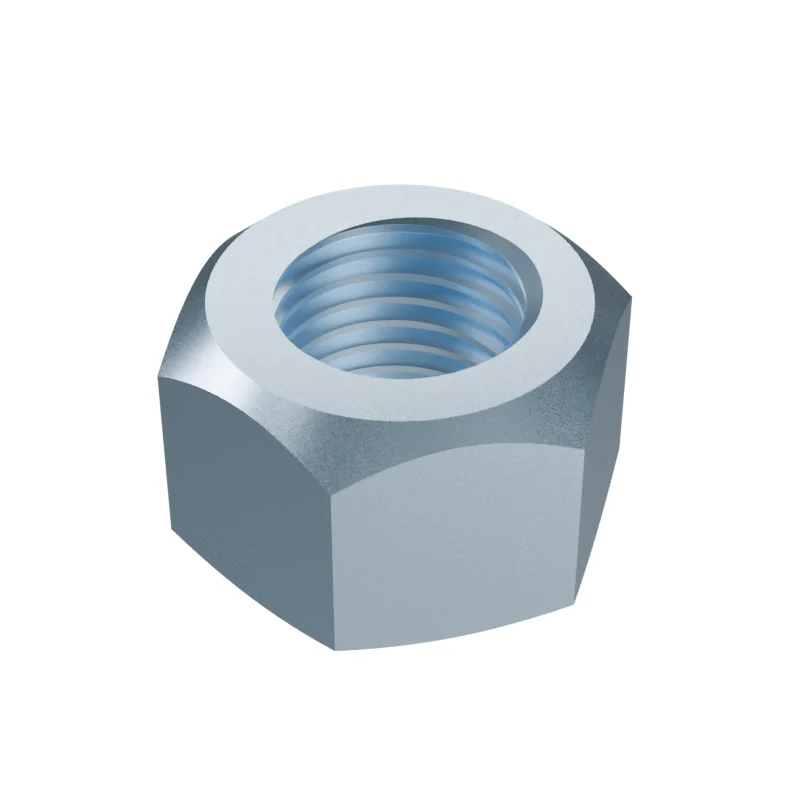

ISO 7042 M36 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M36
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M36 | – | – | M36 |
| P | Thread pitch | 4 | – | – | 4 |
| da | Underhead diameter | – | – | 38.9 | 38.9 |
| da | Clearance diameter | – | 36 | – | 36 |
| dw | Bearing diameter | – | 51.11 | – | 51.1 |
| e | Width across corners | – | 60.79 | – | 60.79 |
| h | Thickness | – | 33.1 | 36 | 34–36 |
| mw | Wrenching height | – | 23.52 | – | 19.8 |
| s | Width across flats | – | 53.8 | 55 | 53.8–55 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 445.61 kg per 1 000 pieces · Bare steel, before coating and packing.2.2 pieces per kg
