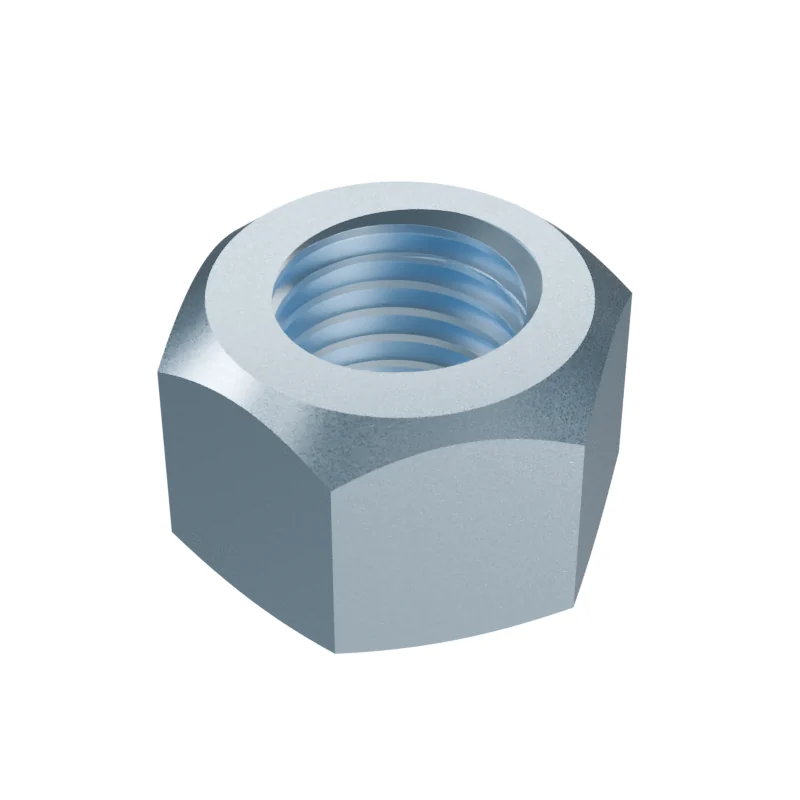

ISO 7042 M24 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M24
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| da | Underhead diameter | – | – | 25.9 | 25.9 |
| da | Clearance diameter | – | 24 | – | 24 |
| dw | Bearing diameter | – | 33.25 | – | 33.2 |
| e | Width across corners | – | 39.55 | – | 39.55 |
| h | Thickness | – | 22.6 | 23.9 | 22–24 |
| mw | Wrenching height | – | 16.16 | – | 13.2 |
| s | Width across flats | – | 35 | 36 | 35–36 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 130.59 kg per 1 000 pieces · Bare steel, before coating and packing.7.7 pieces per kg
