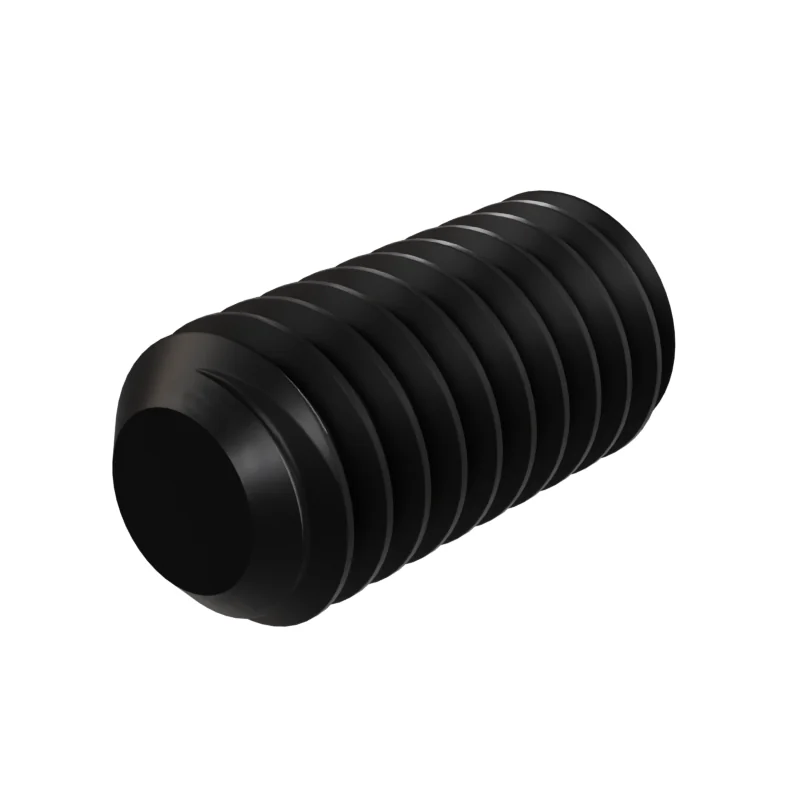

DIN 913 M4 x 8 Flat Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M4 x 8
mm · DIN 913 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4026 | |
|---|---|---|---|---|---|
| d | Thread size | M4 | – | – | M4 |
| P | Thread pitch | 0.7 | – | – | 0.7 |
| l | Length | 8 | – | – | 8 |
| s | Hex socket size | 2 | – | – | 2 |
- ISO 4026
- Values in bold differ from DIN 913.
- Length
- 8 mm · 7.71–8.29 mm to DIN 913 product grade A
- Approx. weight
- ≈ 0.53 kg per 1 000 pieces · Bare steel, before coating and packing.1887 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine4.3 mm
Clearance hole · medium4.5 mm
Clearance hole · coarse4.8 mm
Tap drill3.3 mm
