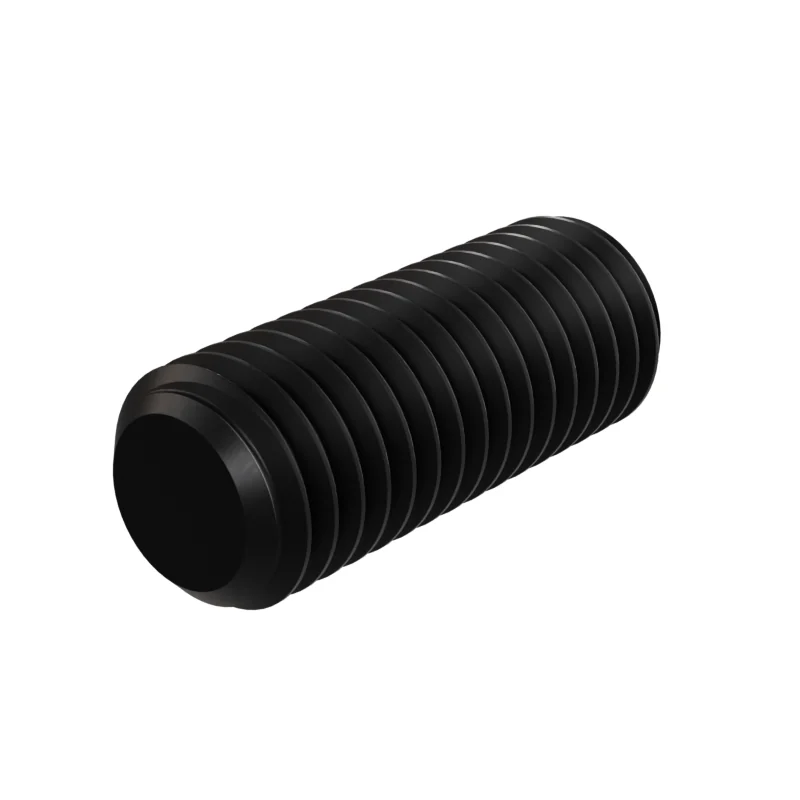

DIN 913 M12 x 30 Flat Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M12 x 30
mm · DIN 913 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4026 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| l | Length | 30 | – | – | 30 |
| s | Hex socket size | 6 | – | – | 6 |
- ISO 4026
- Values in bold differ from DIN 913.
- Length
- 30 mm · 29.58–30.42 mm to DIN 913 product grade A
- Approx. weight
- ≈ 19.60 kg per 1 000 pieces · Bare steel, before coating and packing.51.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
