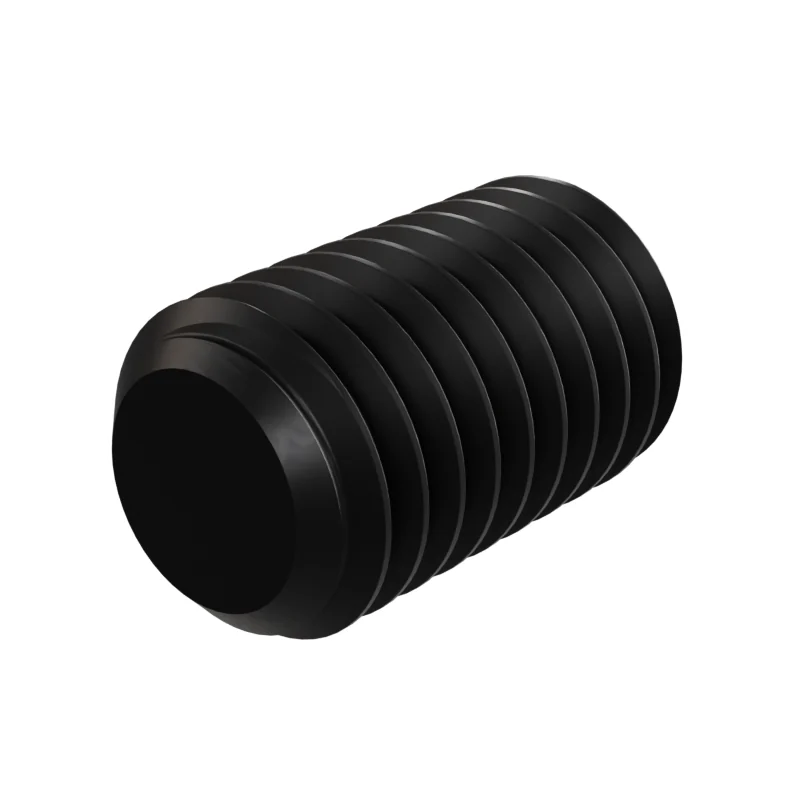

DIN 913 M10 x 16 Flat Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M10 x 16
mm · DIN 913 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4026 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 16 | – | – | 16 |
| s | Hex socket size | 5 | – | – | 5 |
- ISO 4026
- Values in bold differ from DIN 913.
- Length
- 16 mm · 15.65–16.35 mm to DIN 913 product grade A
- Approx. weight
- ≈ 6.78 kg per 1 000 pieces · Bare steel, before coating and packing.147 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
