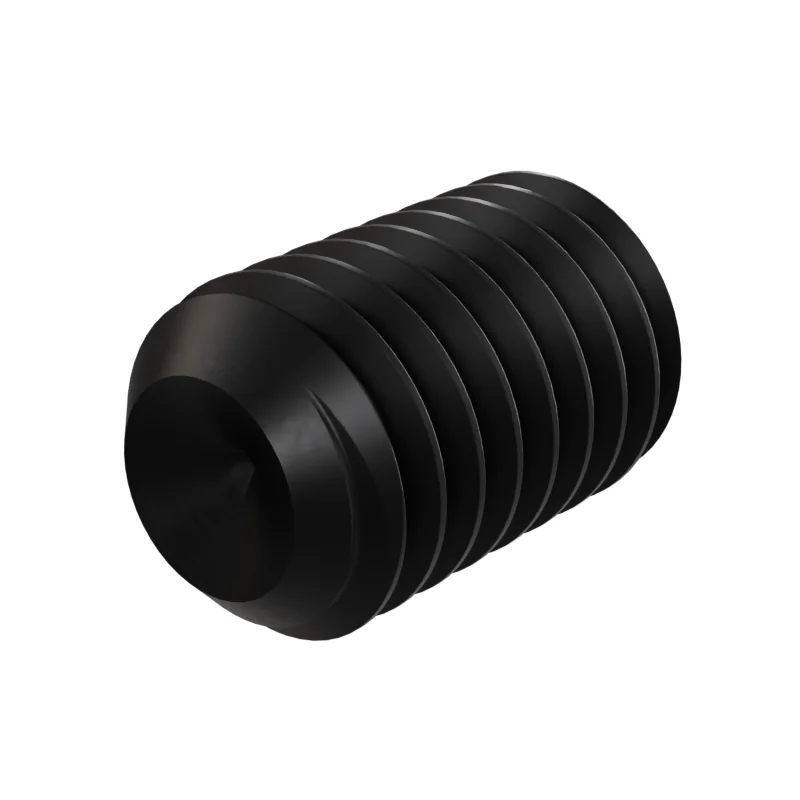

DIN 916 M8 x 12 Cup Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M8 x 12
mm · DIN 916 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4029 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| l | Length | 12 | – | – | 12 |
| s | Hex socket size | 4 | – | – | 4 |
- ISO 4029
- Values in bold differ from DIN 916.
- Length
- 12 mm · 11.65–12.35 mm to DIN 916 product grade A
- Approx. weight
- ≈ 3.14 kg per 1 000 pieces · Bare steel, before coating and packing.318 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
