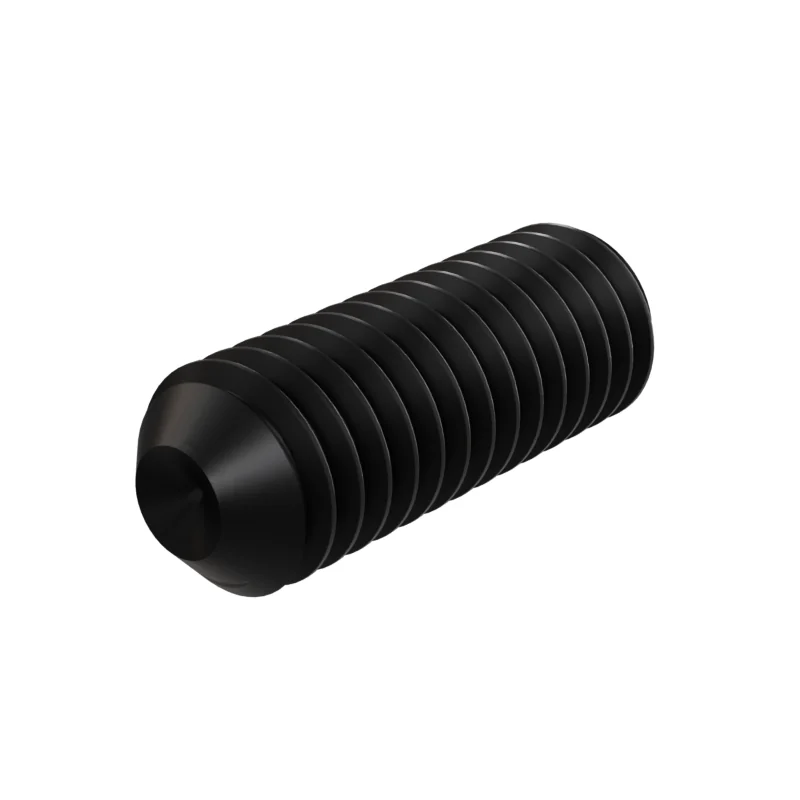

DIN 916 M6 x 16 Cup Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M6 x 16
mm · DIN 916 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4029 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| l | Length | 16 | – | – | 16 |
| s | Hex socket size | 3 | – | – | 3 |
- ISO 4029
- Values in bold differ from DIN 916.
- Length
- 16 mm · 15.65–16.35 mm to DIN 916 product grade A
- Approx. weight
- ≈ 2.49 kg per 1 000 pieces · Bare steel, before coating and packing.402 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
