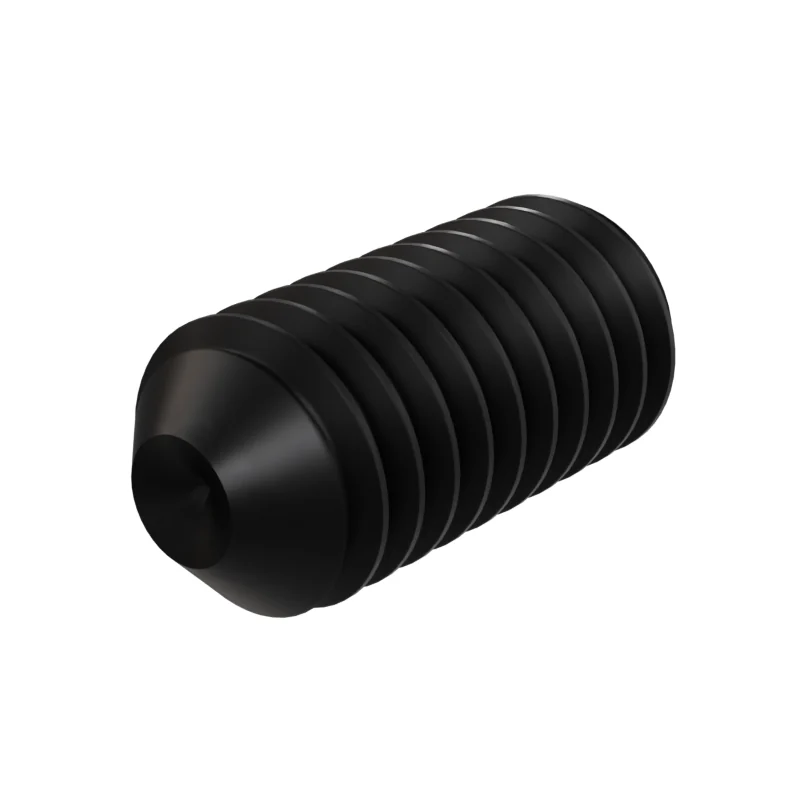

DIN 916 M3 x 6 Cup Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M3 x 6
mm · DIN 916 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4029 | |
|---|---|---|---|---|---|
| d | Thread size | M3 | – | – | M3 |
| P | Thread pitch | 0.5 | – | – | 0.5 |
| l | Length | 6 | – | – | 6 |
| s | Hex socket size | 1.5 | – | – | 1.5 |
- ISO 4029
- Values in bold differ from DIN 916.
- Length
- 6 mm · 5.76–6.24 mm to DIN 916 product grade A
- Approx. weight
- ≈ 0.22 kg per 1 000 pieces · Bare steel, before coating and packing.4545 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine3.2 mm
Clearance hole · medium3.4 mm
Clearance hole · coarse3.6 mm
Tap drill2.5 mm
