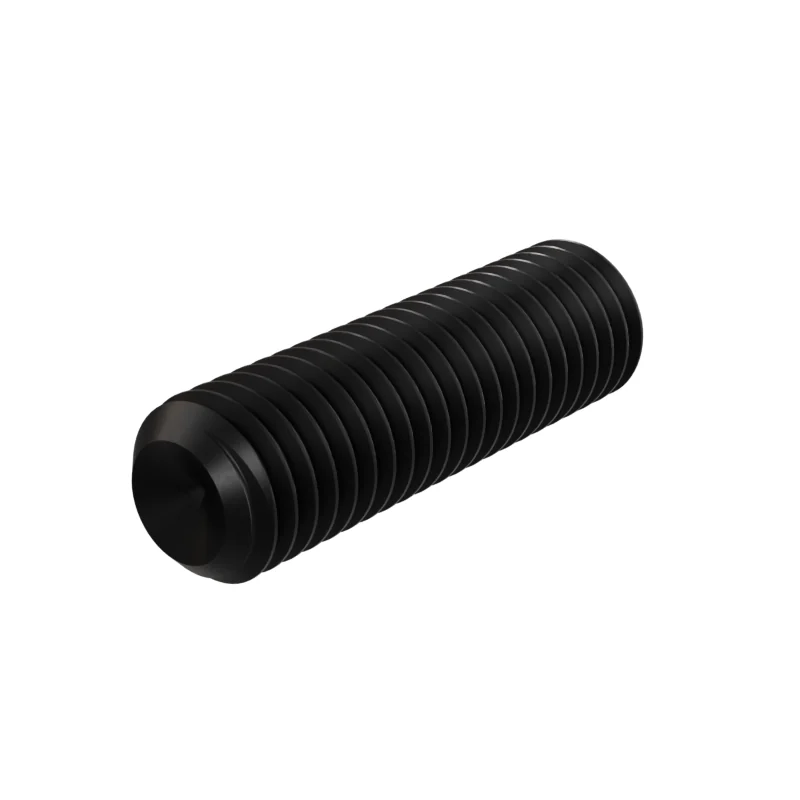

DIN 916 M12 x 40 Cup Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M12 x 40
mm · DIN 916 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4029 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| l | Length | 40 | – | – | 40 |
| s | Hex socket size | 6 | – | – | 6 |
- ISO 4029
- Values in bold differ from DIN 916.
- Length
- 40 mm · 39.5–40.5 mm to DIN 916 product grade A
- Approx. weight
- ≈ 26.70 kg per 1 000 pieces · Bare steel, before coating and packing.37.5 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
