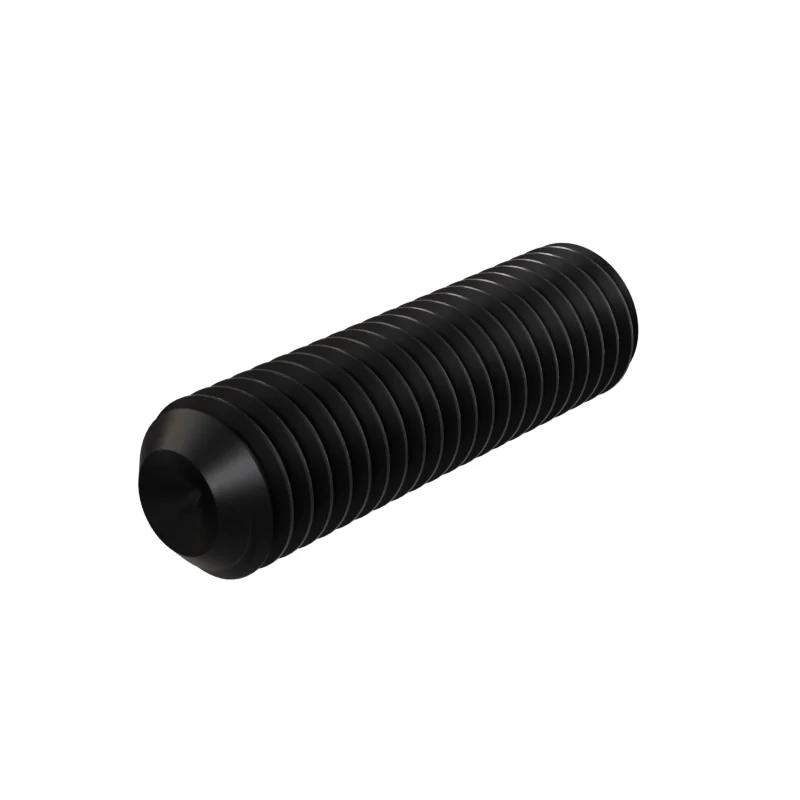

DIN 916 M10 x 35 Cup Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M10 x 35
mm · DIN 916 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4029 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 35 | – | – | 35 |
| s | Hex socket size | 5 | – | – | 5 |
- ISO 4029
- Values in bold differ from DIN 916.
- Length
- 35 mm · 34.5–35.5 mm to DIN 916 product grade A
- Approx. weight
- ≈ 16.20 kg per 1 000 pieces · Bare steel, before coating and packing.61.7 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
